1 Series: Electric Powered Wheelbarrow

Capacity: 1200 lbs

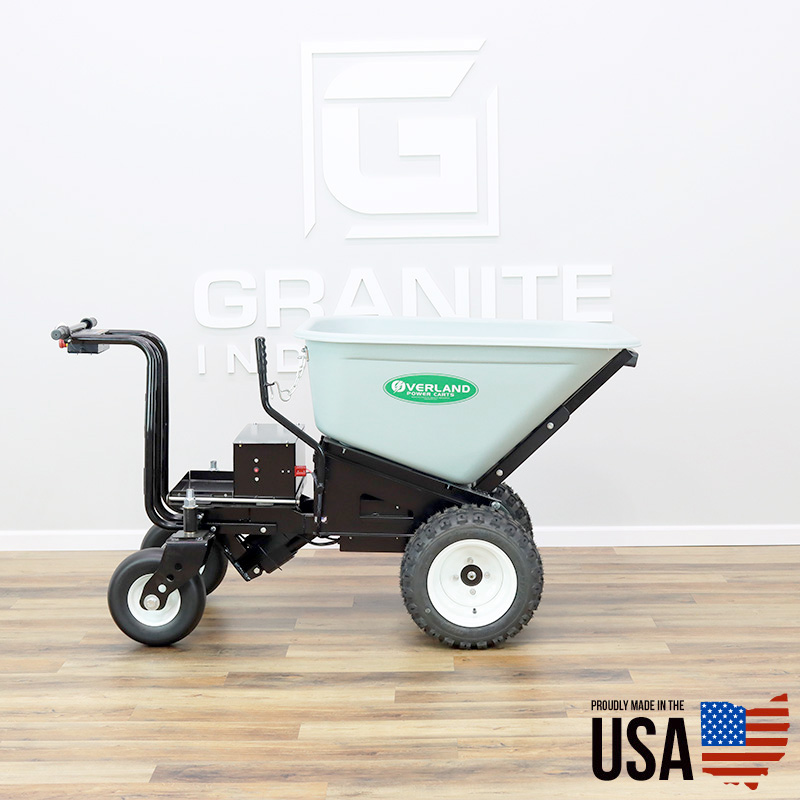

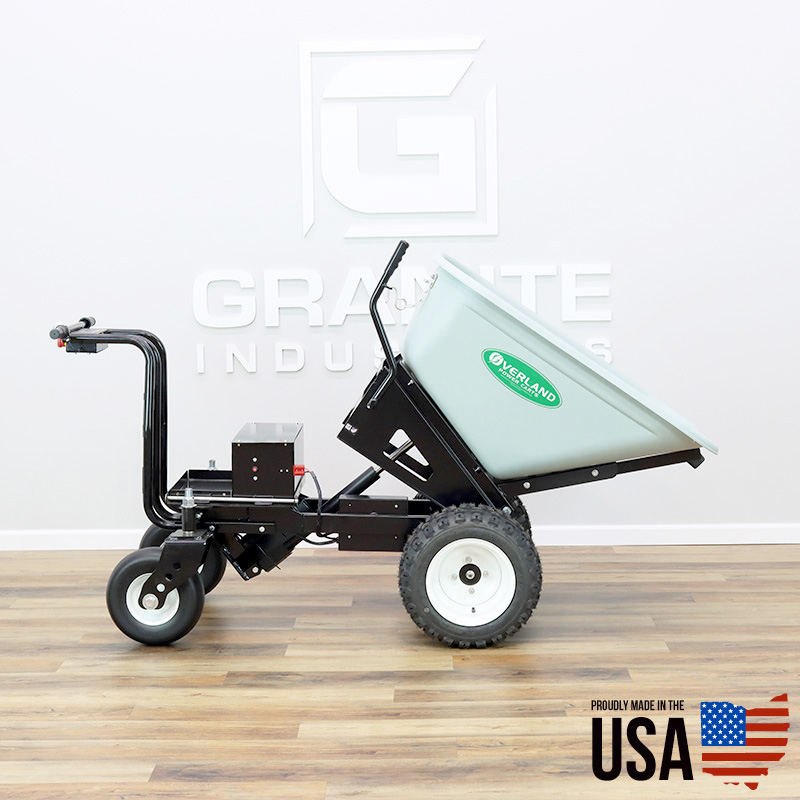

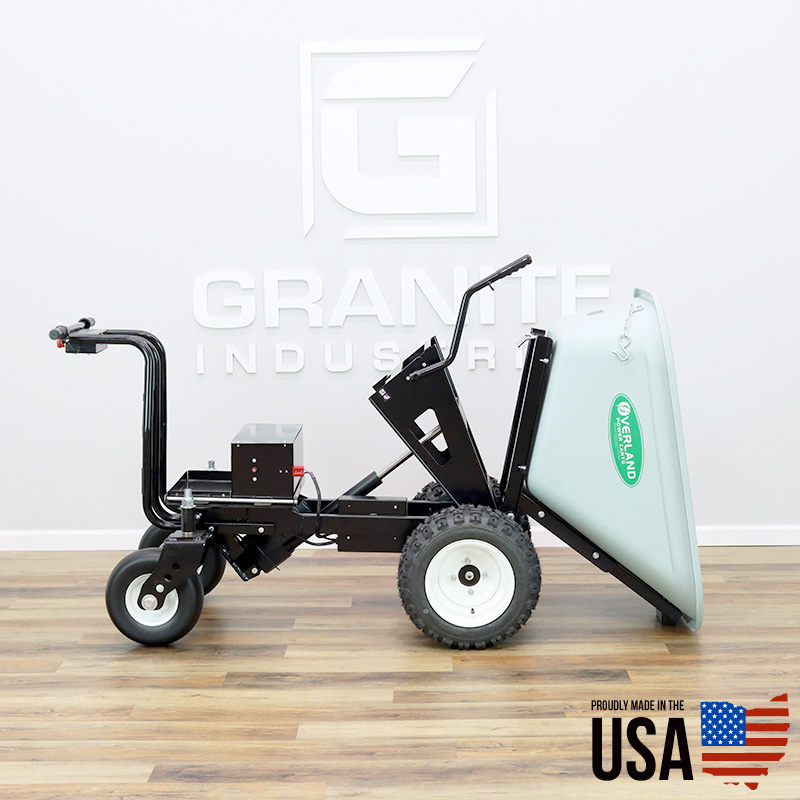

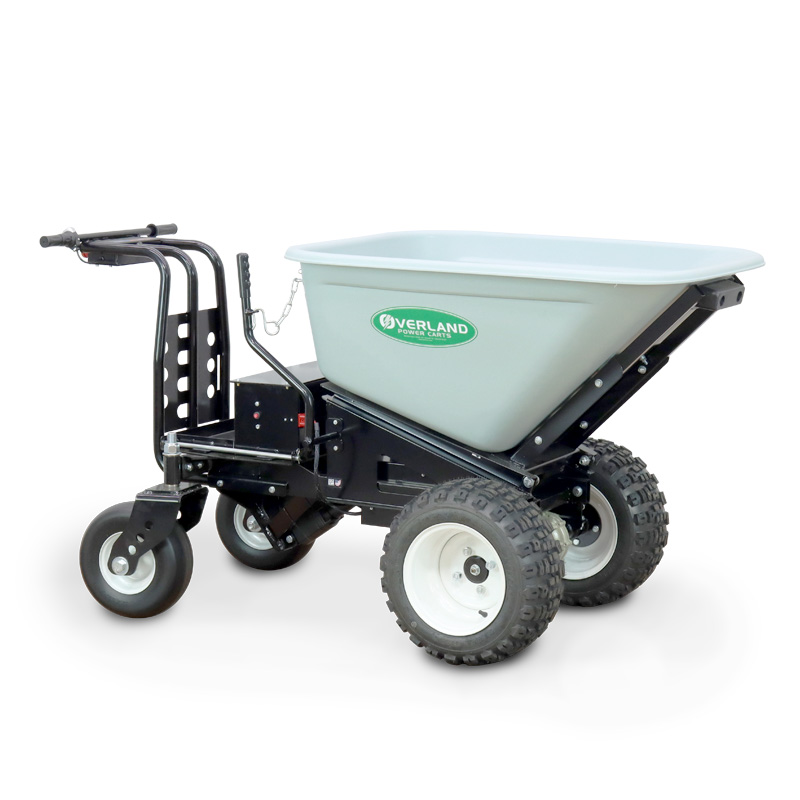

70319 1400 Power Cart 10 Cu ft w/ Power Dump


Our first wheelbarrow to feature a 1400 watt 36 volt motor. The 36v, 75 amp hr battery pack is the largest and longest lacking pack in our lineup.



  • NEW: 1400W, 36V high performance electric motor
  • NEW: 36V 75 amp-hr rechargeable battery pack
  • NEW: 18 Amp-Hr off board charger with battery management system
  • Electric drive system with forward and reverse
  • 13” Flat free heavy duty swivel wheels
  • 18” pneumatic all terrain tires

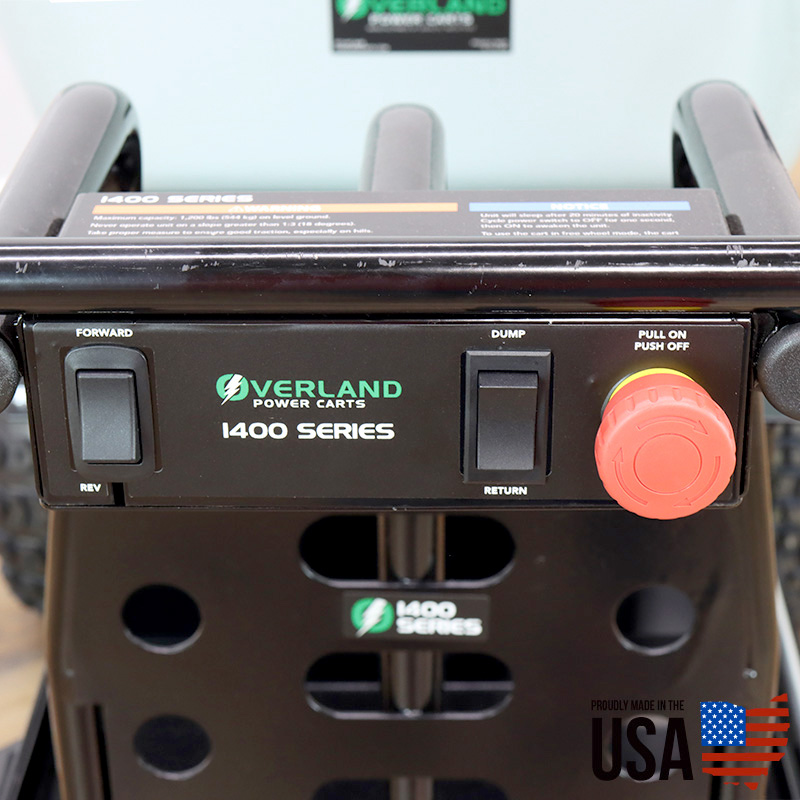

  • Twist throttle with battery indicator lights
  • Real world run time: 14-16 hrs, 18-19 miles (estimated)
  • Charge Time: 4-5 hrs
  • Dimensions: 41.5”H x 36”W x 75”L
  • Weight: 526 lb
  • 1,200 lb capacity on hard flat surfaces
  • 1,100 lb capacity on inclines up to 16 degrees


  • 13” Flat free heavy duty swivel wheels
  • 18” pneumatic all terrain tires
  • Dimensions: 41.5”H x 36”W x 75”L
  • Weight: 526 lb


Additional Specs

    • Hopper Capacity: 10 cubic feet
    • Hopper Dimensions: 20″H x 36″W x 45″D
    • Motor: 1400 Watt, 24 Volt DC Permanent Magnet
    • Drive: Single Reduction Open Differential Transaxle
    • Capacity: Level Ground 1200 lbs (544 kgs) Level Ground, 1100 lb (498 kgs) on inclines up to 16 degrees
    • Speed: 0 – 3.2 mph / (0 – 5.2 kph), Variable
    • Static/Park Brake: Electromechanical, Fail Safe
    • Dynamic/Green Braking: Yes
    • Manual Brake Override: Yes
    • Battery: Removable 36V 75 amp-hr rechargeable battery pack
    • Controller Capacity: 70 Amps
    • Charger: Off Board, 18 Amp
    • Battery Life: 300 to 500 Charge/Discharge Cycles
    • Real World Battery Capacity: 4-5 hrs
    • Charge Time: 8-9 hrs


  • Easy to use – You’re off and running in two steps. Power it up, twist the throttle and you’re off!
  • Safe to Operate – We’ve integrated several elements to keep the operator safe and sound.
  • Made in the USA – Our customers want quality and know they can find it here. All of our carts are engineered and built in Archbold, Ohio.
  • All electric power – Electric power means quiet operation and you can breathe easy knowing there are no emissions to worry about.
  • Minimal Maintenance – The only thing you have to do, is remember to charge the battery.
  • All Day Battery – Our carts will probably outlast the operator, running all day long on a single charge.
  • Massive Capacity – Overland carts can haul up to 750 lbs.
  • Fully Assembled – Don’t worry, we’re not going to make you put it together. All of our carts arrive fully assembled and crated.
  • SmoothStart – Speed is increased in a gradual controlled manner, preventing the cart from jerking away from you.
  • HillSense – The cart will adjust itself on inclines and declines and travel and consistently travel at the speed the user chooses.
  • AutoLock – You never have to worry about the cart rolling away from you – even on an incline. An automatic parking brake secures the wheels in place when the cart is not in use.
  • Emergency Stop – Press the e-stop button if you need to suddenly stop the cart. Pressing this button shuts the unit down in it’s tracks.
  • Four Wheel Design – Four wheels means greater stability, and the entire load is held by the cart, not the user.
  • Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time.  If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
  • Throttle Controlled Braking – Our simplified design has no extra brake to operate. All braking is done with the throttle.
  • Throttle Defaults to Zero MPHThe cart speed returns to zero if the throttle is released intentionally or accidentally.  Once the cart comes to a complete stop, the AutoLock will then engage preventing further undesired movement.
  • No open gears, belts, or hot components – There’s no need to worry, you’re safe from burns and other injuries.
  • Tested Over Time – From their beginning over 10 years ago, Overland Carts have been tested and re-tested. So rest assured, they have been engineered and built with your well being in mind.

13″ Flat Free Dual Ag Tire

Features all the benefits of our pneumatic dual ag tire, but with the advantage of flat free construction. The semi-pneumatic tire features a thick molded outer core with a hollow center.  This tires does not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.

13″ Flat Turf Tire

Recommended tire for flat surfaces and indoor use where cart width is important. The width from the tires is measured as 24″ from tire edge to tire edge when mounted on the cart.

13″ Pneumatic Single Ag Tire

Recommended where more traction is needed than turf tires but cart width is still important. The width from the tires is measured as 24″ from tire edge to tire edge when mounted on the cart.

Reviews and Blog Posts


Overland Limited Warranty

1 year – Powertrain, Electronics and Hopper
3 year – Chassis
Limited to manufacturing defects
For the full warranty – Overland Limited Warranty
