4 Wheel Drive Carts
Models
C34-10A (70060) 10 Cu. Ft. Hopper, Dual Ag Tires, 4WD
C34-8A (70059) 8 Cu. Ft. Hopper, Dual Ag Tires, 4WD
C34-7A (70061)7 Cu. Ft. Hopper, Dual Ag Tires, 4WD
C34-10A-PD (70057) 10 Cu. Ft. Hopper, Dual Ag Tires, 4WD & Power Dump
C34-8A-PD (70058) 8 Cu. Ft. Hopper, Dual Ag Tires, 4WD & Power Dump
C34-7A-PD (70062) 7 Cu. Ft. Hopper, Dual Ag Tires, 4WD & Power Dump

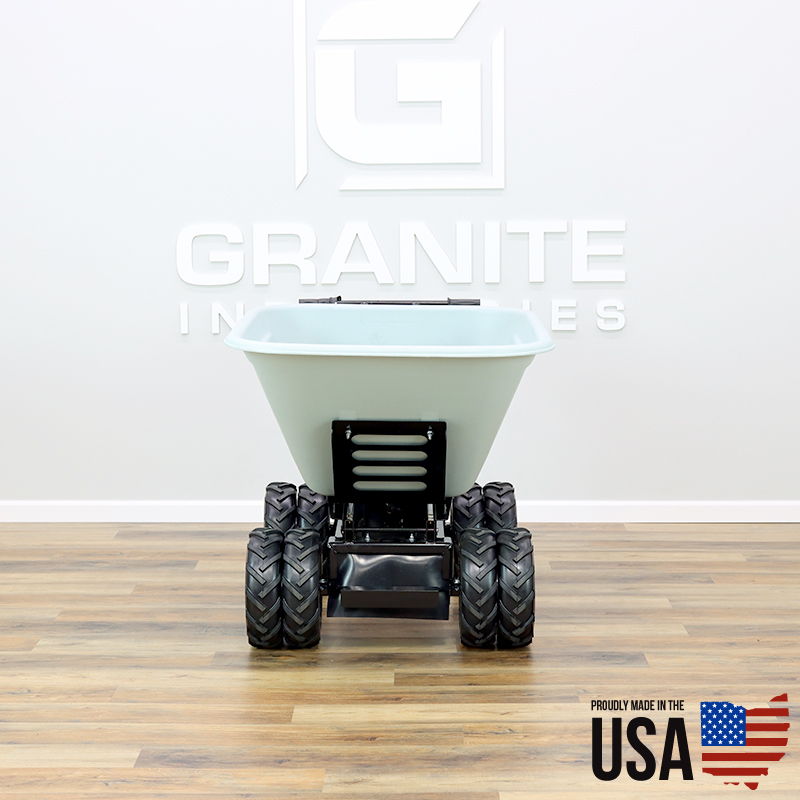

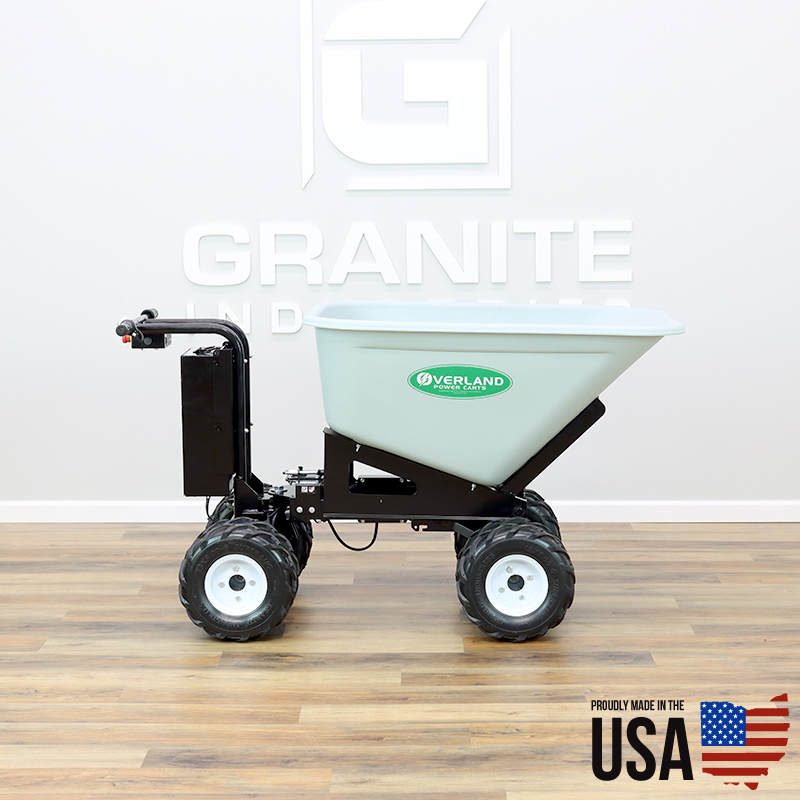

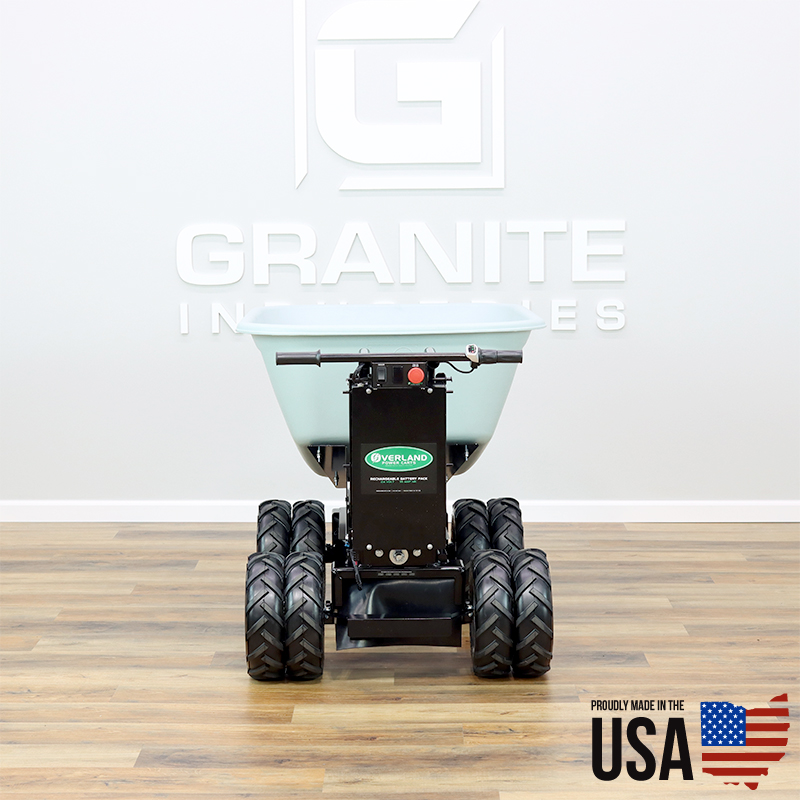

More muscle at the turn of your wrist. Our 4WD wheelbarrow has an articulated chassis for easier maneuverability and it is able to power over uneven terrain like no other cart in our lineup.

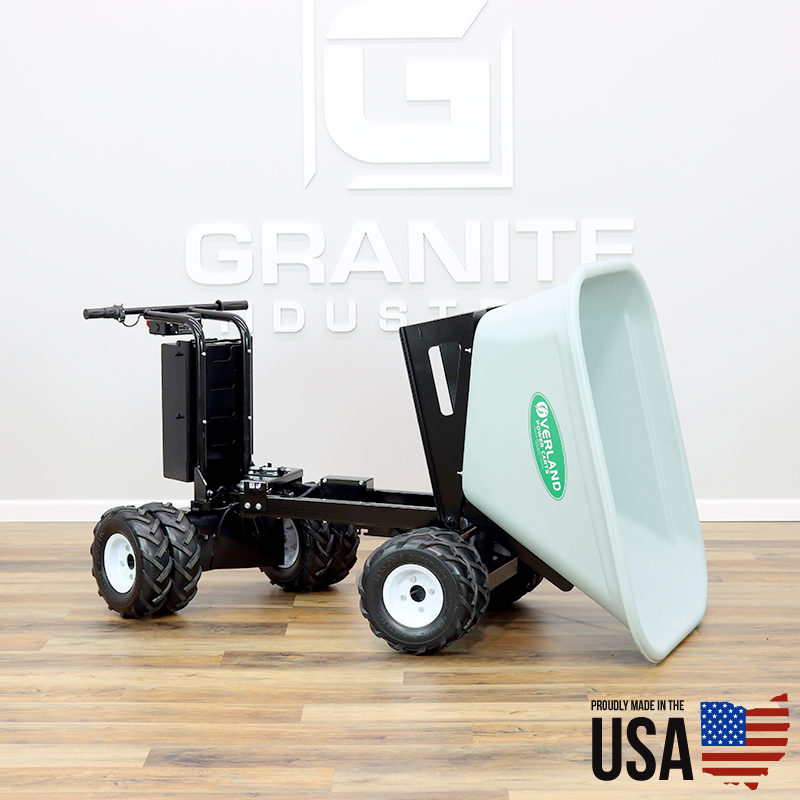

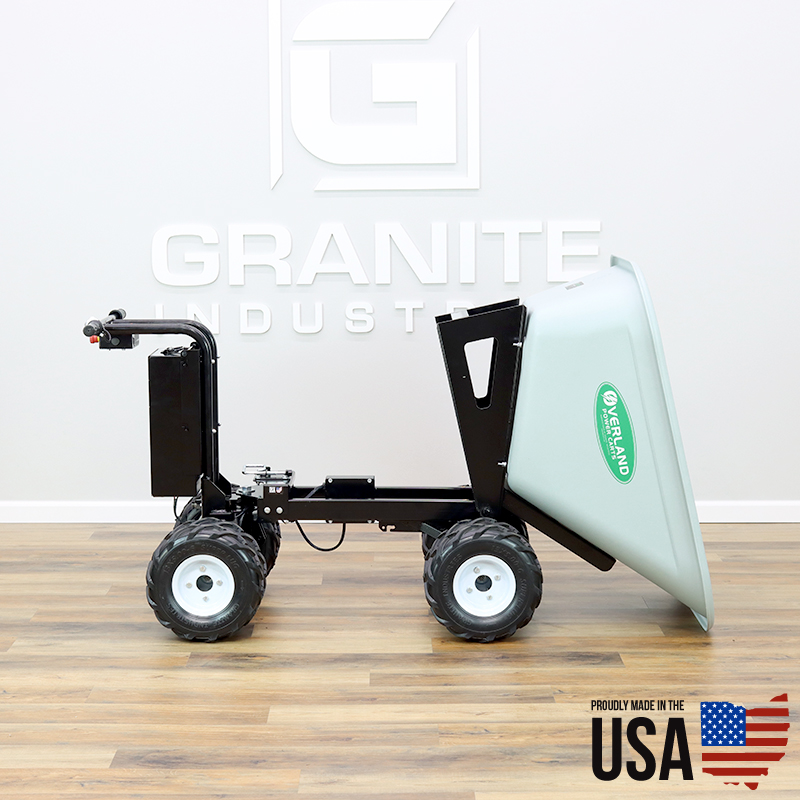

Available with or without Power Dump. Includes extended range battery.
Top Five Reasons to Buy an Overland
1. Easy to operate – So easy to use, even a child can safely operate it. Plus it saves back and muscle strain.
2. Made in the USA – Quality you can feel. Manufacturing & support is all out of Archbold, OH.
3. All electric power – zero emissions, zero fumes, full power all the time.
4. Minimal Maintenance – No oil filters, air filters or gas to add. Just remember to plug it in.
5. All Day Battery – Operate the cart throughout the day on a single charge.
Bonus – 750 lb capacity – Load up the cart with 750 lbs of whatever you want.
Additional Features
- Articulated Chassis for improved maneuverability
- Simultaneously powered front and rear axle
Tire Descriptions
Dual Ag Tire – Best performing tire and most popular tire. It works well for all applications, especially where maximum traction is desired. The cart width without bucket is 33″ from tire edge to tire edge.
Turf Tire– Recommended tire for flat surfaces and indoor use where cart width is important. The cart width without bucket is 24″ from tire edge to tire edge.
Single Ag Tire– Recommended where more traction is needed than a turf tire but cart width is still important. The cart width without bucket is 24″ from tire edge to tire edge.
Dimensions: Four Wheel Drive Wheelbarrow WITHOUT Power Dump
10 cu. ft. hopper – CX34-10A-PD (70060): 38”H x 36”W x 64”L
8 cu. ft. hopper – CX34-8A-PD (70059): 38”H x 34”W x 64”L
7 cu. ft. hopper – CX34-7A-PD (70061): 38”H x 33”W x 64”L
Weights: Four Wheel Drive Wheelbarrow WITHOUT Power Dump
10 cu. ft. hopper – CX34-10A-PD (70060): 252 lbs
8 cu. ft. hopper – CX34-8A-PD (70059): 250 lbs
7 cu. ft. hopper – CX34-7A-PD (70061): 248 lbs
Dimensions: Four Wheel Drive Wheelbarrow WITH Power Dump
10 cu. ft. hopper – CX34-10A-PD (70057): 39”H x 36”W x 64”L
8 cu. ft. hopper – CX34-8A-PD (70058): 39″H x 34”W x 64”L
7 cu. ft. hopper – CX34-7A-PD (70062): 39”H x 33”W x 64”L
Weights: Four Wheel Drive Wheelbarrow WITH Power Dump
10 cu. ft. hopper – CX34-10A-PD (70057): 288 lbs
8 cu. ft. hopper – CX34-8A-PD (70058): 286 lbs
7 cu. ft. hopper – CX34-7A-PD (70062): 284 lbs
Motor – 1 x 24 Volt DC Permanent Magnet
Continuous Power – 1 x 400 watts (0.536HP) at 24V
Drive – Single Reduction Open Differential Transaxle
Gear Ratio – 18:01
Capacity Level Ground – 750 lbs (295 kgs) Level Ground
Capacity 3:1 Slope – 500 lbs (227 kgs) 3:1 Slope
Speed – 0 – 2.4 mph / (0 – 3.9kph), Variable
Static/Park Brake – Electromechanical, Fail Safe
Dynamic/Green Braking – Yes
Manual Brake Override – Yes
Battery – Removable & Rechargable 24V 21AH Sealed Lead Acid
Controller Capacity – 70 Amps
Charger – On Board, 5 Amp
Battery Life – 300 to 500 Charge/Discharge Cycles
Real World Battery Capacity – 6 – 8 Hours
Unit Capacity – 750 lbs
Overland Limited Warranty
1 year – Powertrain, Electronics and Hopper
3 year – Chassis
Terms
Warranty starts from the order date of the cart
Limited to manufacturing defects
For the full warranty – Overland Limited Warranty
What you need to know – Overland Standard Battery Pack
What you need to know – Overland Extended Range Battery Pack
