Powered Dump

Models

Power Dump – 4 Wheel Drive
CX34-10AP (70057) 10 Cu. Ft. Hopper, 13″ Dual Ag Tires, 4WD & Power Dump
CX34-10FP (70173) 10 Cu. Ft. Hopper, 13″ Flat Free Dual Ag Tires, 4WD & Power Dump
CX34-8AP (70058) 8 Cu. Ft. Hopper, 13″ Dual Ag Tires, 4WD & Power Dump
CX34-8FP (70174) 8 Cu. Ft. Hopper, 13″ Flat Free Dual Ag Tires, 4WD & Power Dump

Power Dump – 2 Wheel Drive
C32-10AP (70051) 10 Cu. Ft. Hopper, 13″ Dual Ag Tires, Power Dump

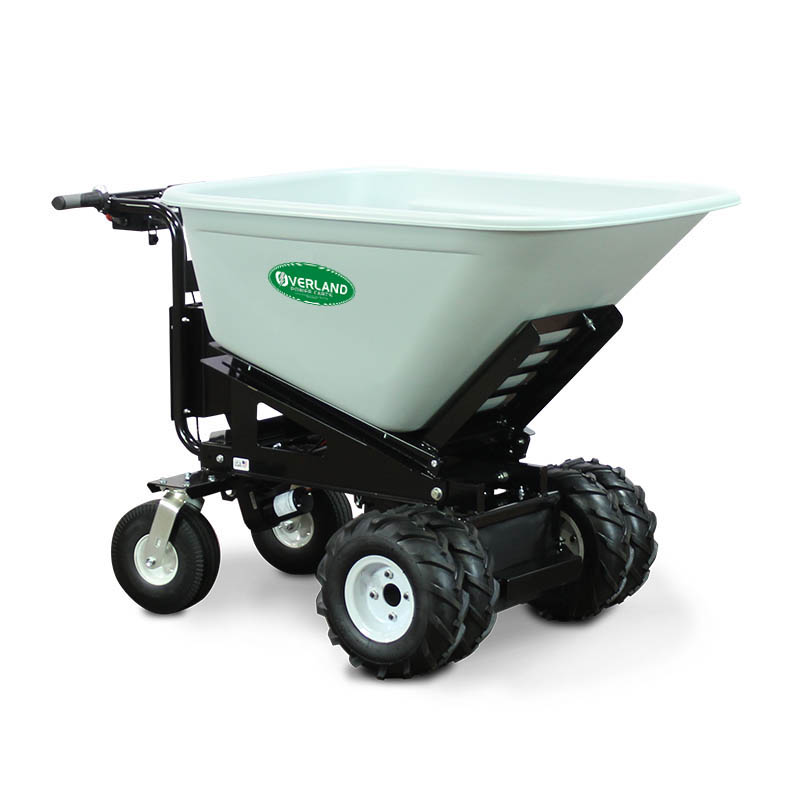

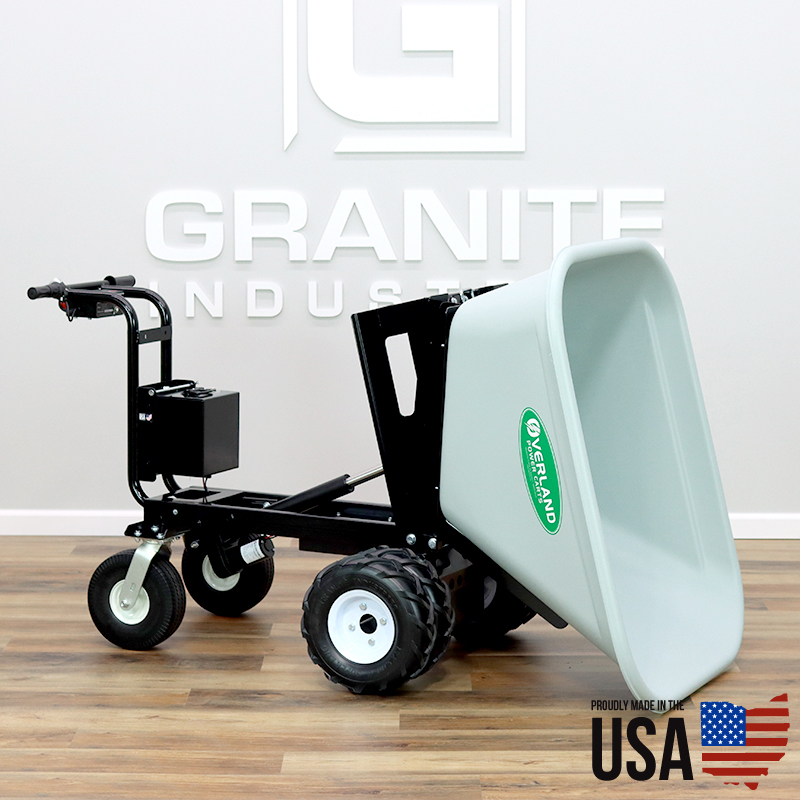

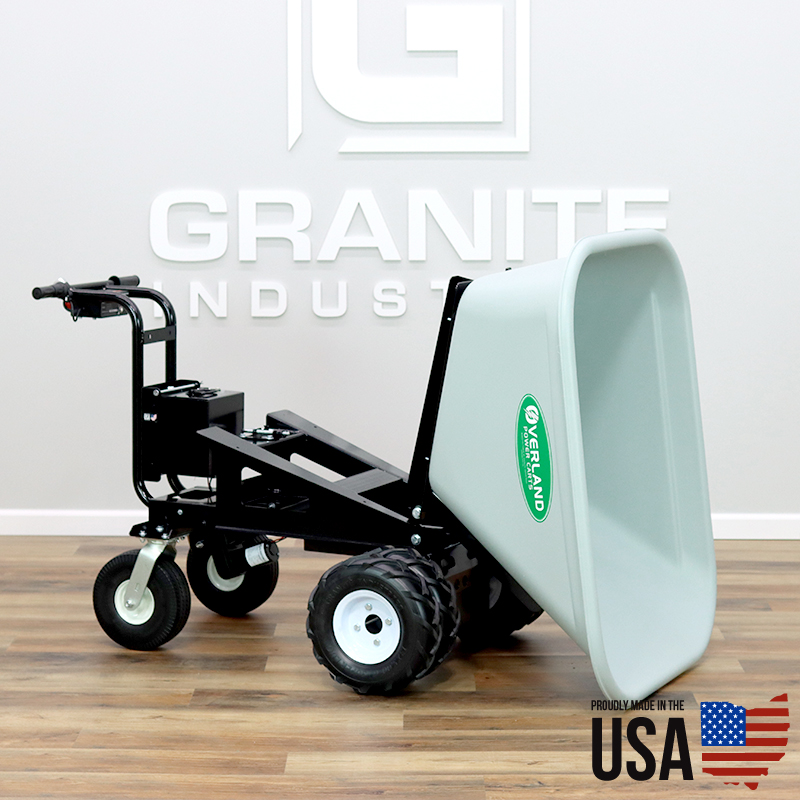

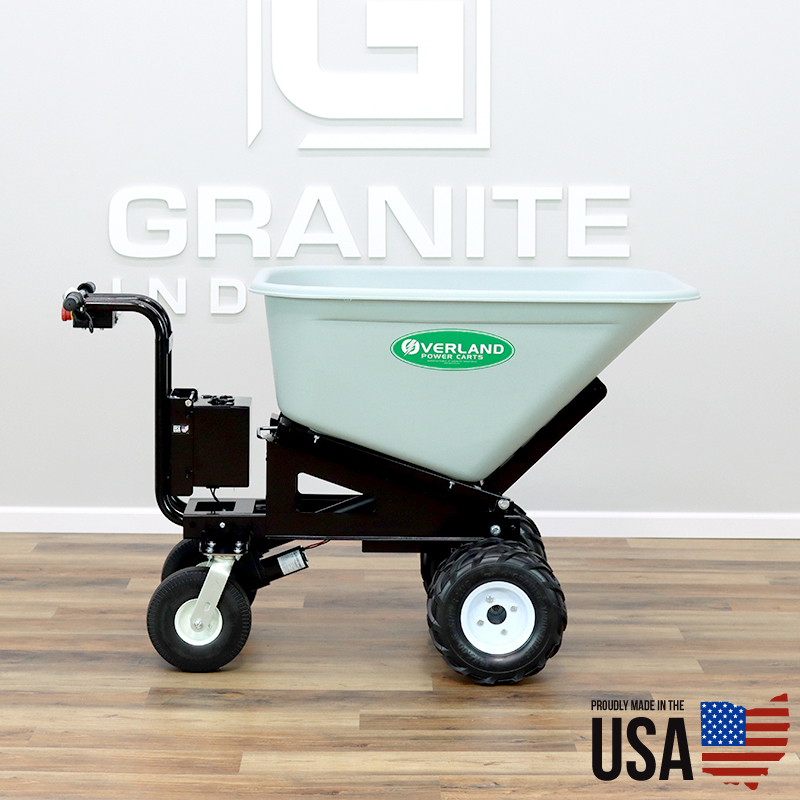

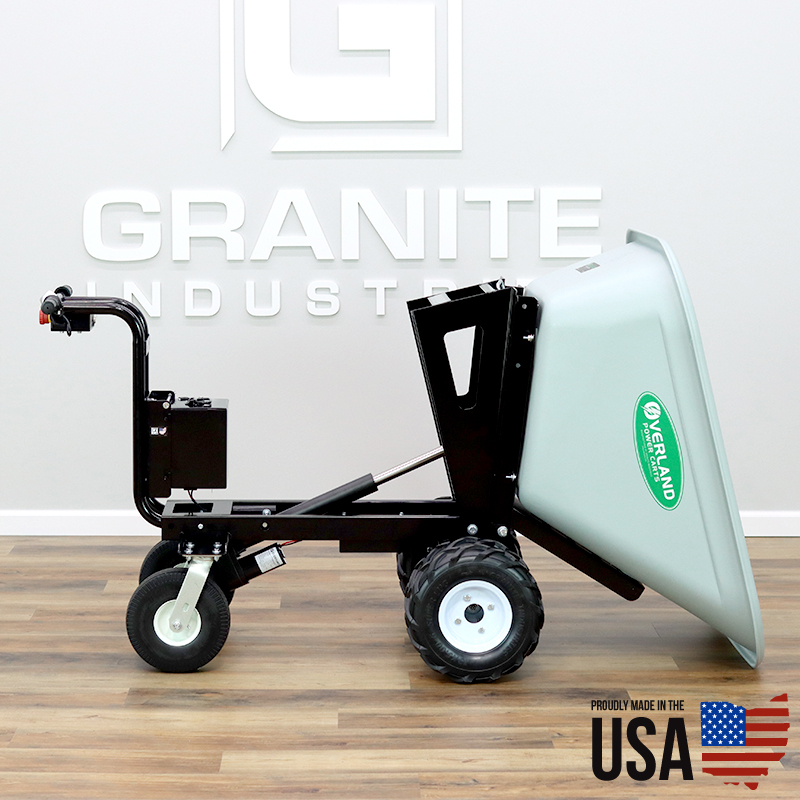

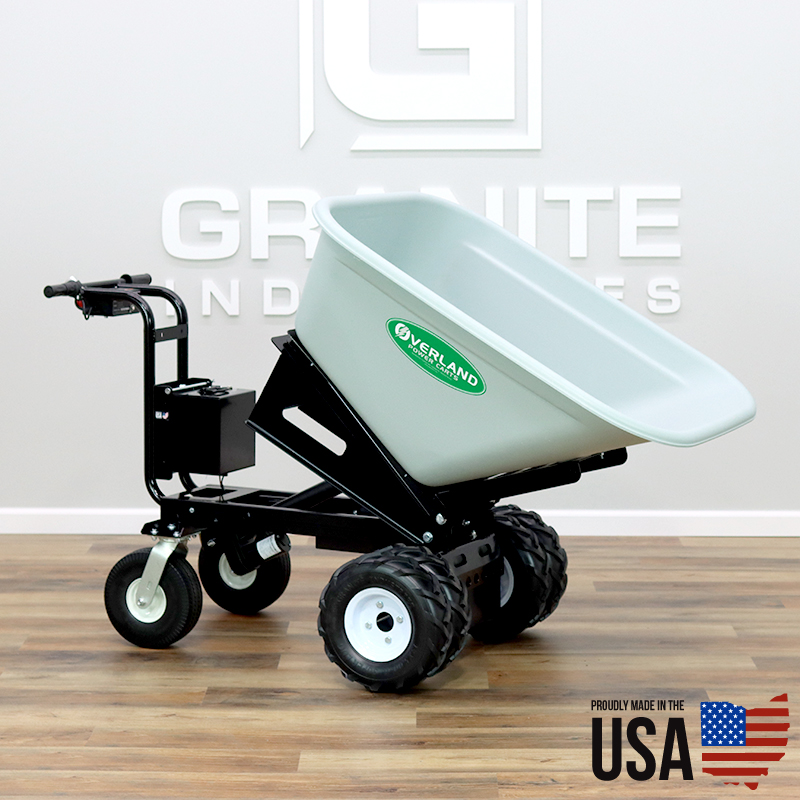

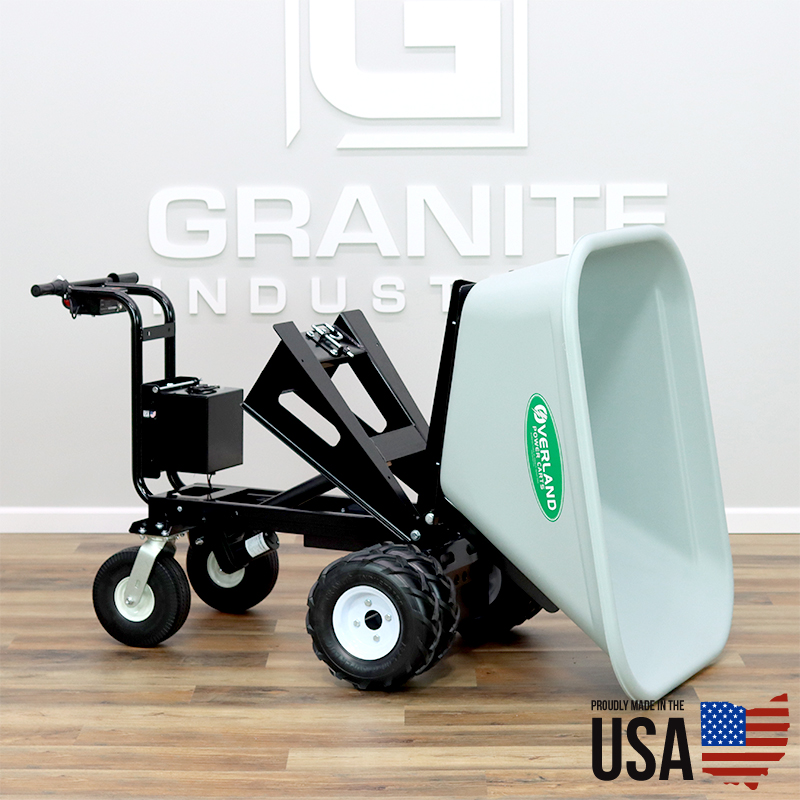

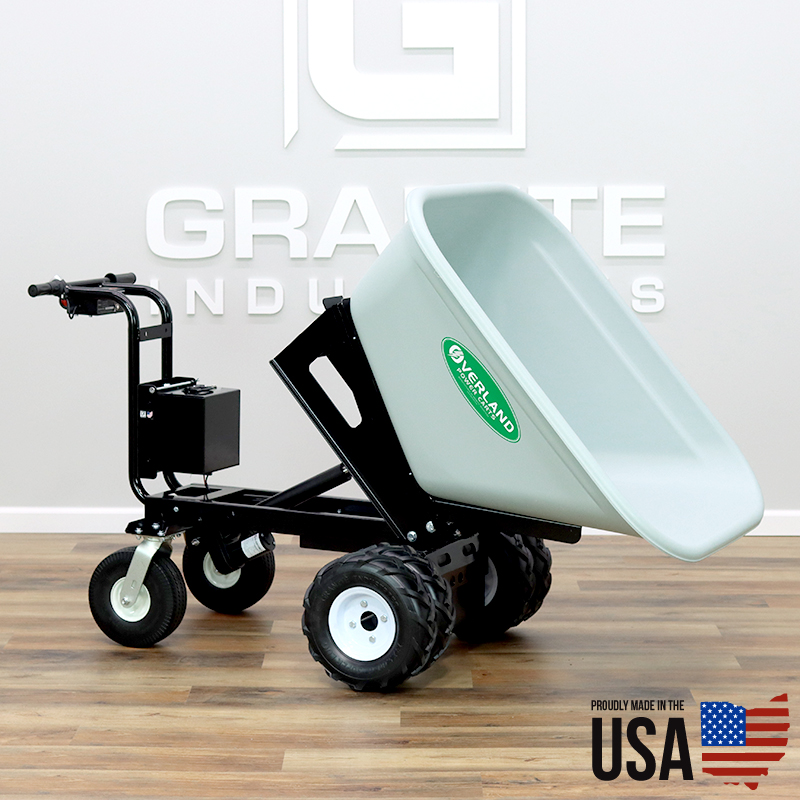

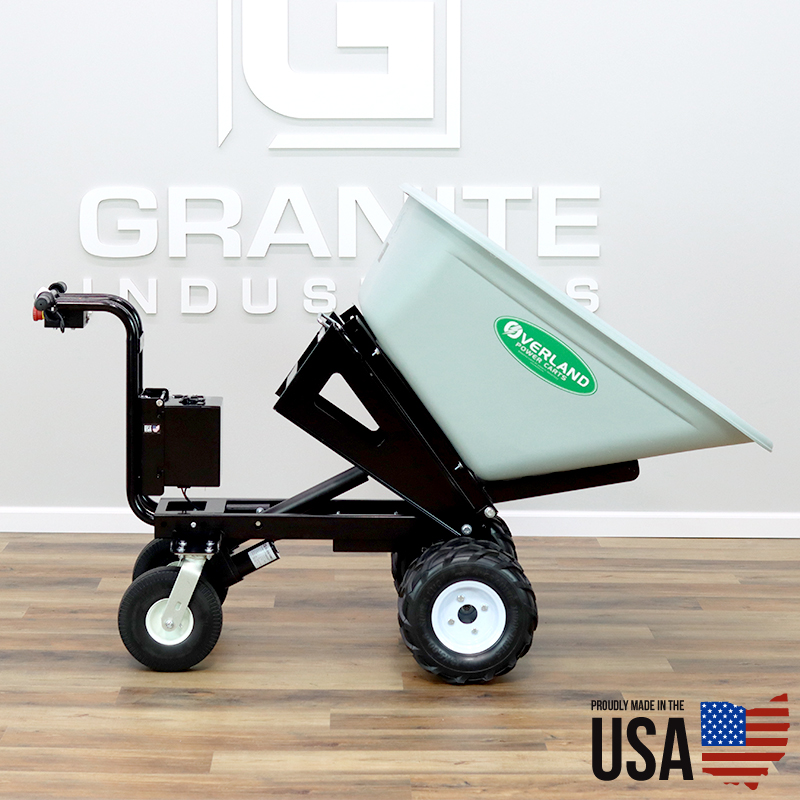

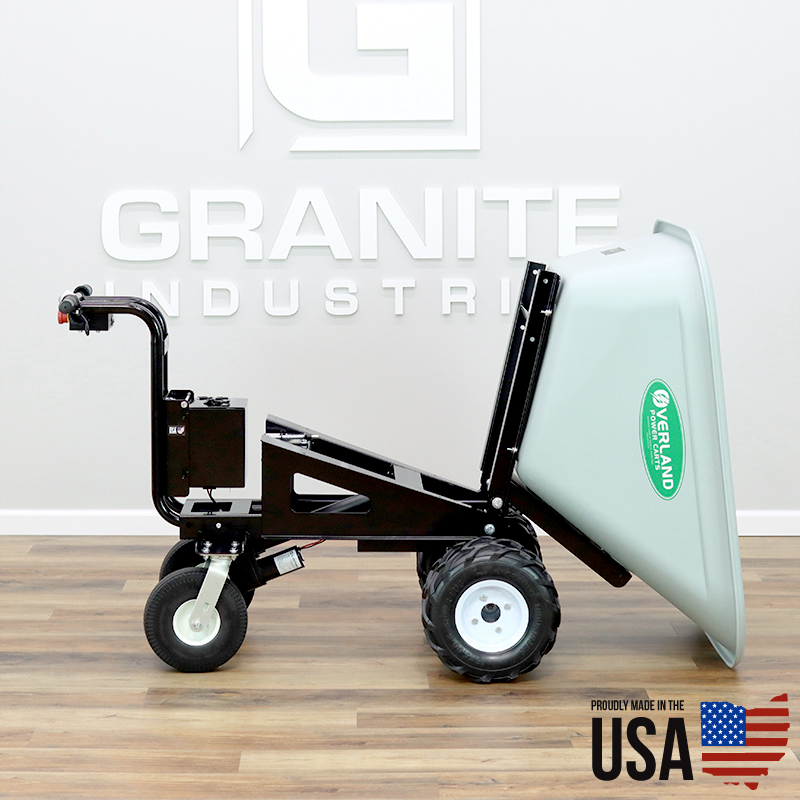

C32-10FP (70213) 10 Cu. Ft. Hopper, 13″ Flat Free Dual Ag Tires, Power Dump
C32-8AP (70054) 8 Cu. Ft. Hopper, 13″ Dual Ag Tires, Power Dump
C32-8FP (70179) 8 Cu. Ft. Hopper, 13″ Flat Free Dual Ag Tires, Power Dump

Need to move heavy loads? The C32-10A-PD is the electric cart for you. This electric wheelbarrow has our largest amount of hauling space – 10 cubic foot – so load it up! The large hopper makes this the perfect cart for moving feed for your animals or stone and mulch for your landscaping jobs. This cart can take on up to 750 lbs of material.

All of our Powered Carts, Wheelbarrows and Wagons use a twist style throttle. They’re simple to operate and will cut down on your work time. We like to say, “Dump Your Old Wheelbarrow and Drive an Overland!”

Top Five Reasons to Buy an Overland
1.  Easy to operate – So easy to use, even a child can safely operate it.  Plus it saves back and muscle strain.
2.  Made in the USA – Quality you can feel.  Manufacturing  & support is all out of Archbold, OH.
3.  All electric power – zero emissions, zero fumes, full power all the time.
4.  Minimal Maintenance – No oil filters, air filters or gas to add.  Just remember to plug it in.
5.  All Day Battery – Operate the cart throughout the day on a single charge.
Bonus – 750 lb capacity – Load up the cart with 750 lbs of whatever you want.

Additional Features

  • Heavy Duty Dumping Hopper
  • Enclosed gear box
  • Powder coated frame
  • Heavy duty 13″ drive tires
  • High density polyethylene tub
  • Variety of quick attach accessories
  • Removable Rechargeable Battery Pack

Tire Descriptions

  • Dual Ag Tire – Best performing tire and most popular tire. It works well for all applications, especially where maximum traction is desired. The cart width without bucket is 33″ from tire edge to tire edge.
  • Flat Free Dual Ag Tire – Features all the benefits of our pneumatic dual ag tire, but with the advantage of flat free construction. The semi-pneumatic tire features a thick molded outer core with a hollow center.  This tires does not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.
  • Turf Tire– Recommended tire for flat surfaces and indoor use where cart width is important. The cart width without bucket is 24″ from tire edge to tire edge.
  • Single Ag Tire– Recommended where more traction is needed than a turf tire but cart width is still important. The cart width without bucket is 24″ from tire edge to tire edge.

C32-10 Wheelbarrow with Power Dump Dimensions
10 cu. ft. hopper with Dual Ag Tires
C32-10A-PD (70051): 38”H x 36”W x 64”L
10 cu. ft. hopper with Flat Free Dual Ag Tires C32-10A-PD (70213): 38”H x 36”W x 64”L
8 cu. ft. hopper with Dual Ag Tires C32-8A-PD (70054): 38”H x 34”W x 64”L
8 cu. ft. hopper with Flat Free Dual Ag Tires C32-8A-PD (70179): 38”H x 34”W x 64”L

C32 Wheelbarrow with Power Dump Weights
10 cu. ft. hopper with Dual Ag Tires
C32-10A-PD (70051): 238 lbs
10 cu. ft. hopper with Flat Free Dual Ag Tires C32-10A-PD (70213): 266 lbs
8 cu. ft. hopper with Dual Ag TiresC32-8A-PD (70179): 236 lbs
8 cu. ft. hopper with Flat Free Dual Ag TiresC32-8A-PD (70054): 264 lbs

10 cu. ft. Hopper Dimensions: 20″H x 36″W x 45″D
8 cu. ft. Hopper Dimensions:
18″H x 34″W x 44″D

Motor – 24 Volt DC Permanent Magnet
Drive – Single Reduction Open Differential Transaxle
Capacity Level Ground – 750 lbs (295 kgs) Level Ground
Speed – 0 – 3.2 mph / (0 – 5.2 kph), Variable
Static/Park Brake – Electromechanical, Fail Safe
Dynamic/Green Braking – Yes
Manual Brake Override – Yes
Battery – Removable & Rechargeable 24V 21AH Sealed Lead Acid
Controller Capacity – 70 Amps
Charger – On Board, 5 Amp
Battery Life – 300 to 500 Charge/Discharge Cycles
Real World Battery Capacity – 6 – 8 Hours
Unit Capacity – 750 lbs

Overland Limited Warranty
1 year – Powertrain, Electronics and Hopper
3 year – Chassis
Limited to manufacturing defects
For the full warranty – Overland Limited Warranty
