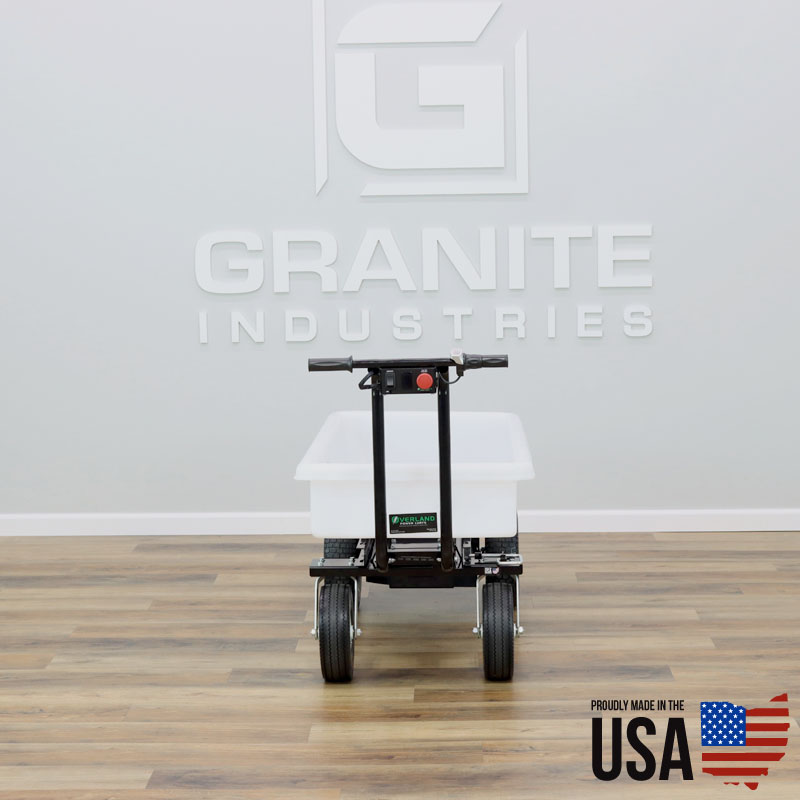

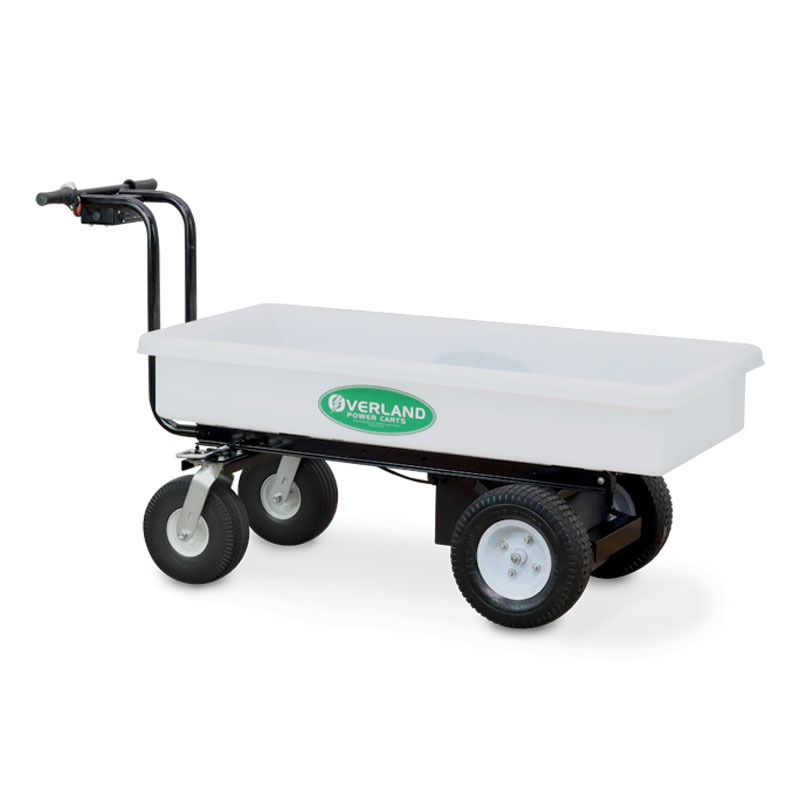

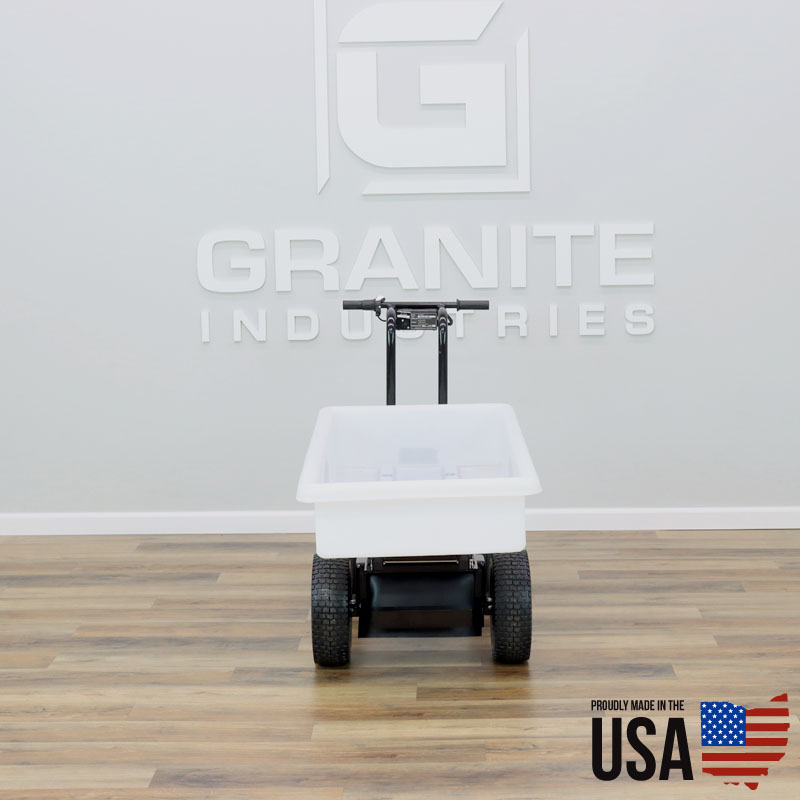

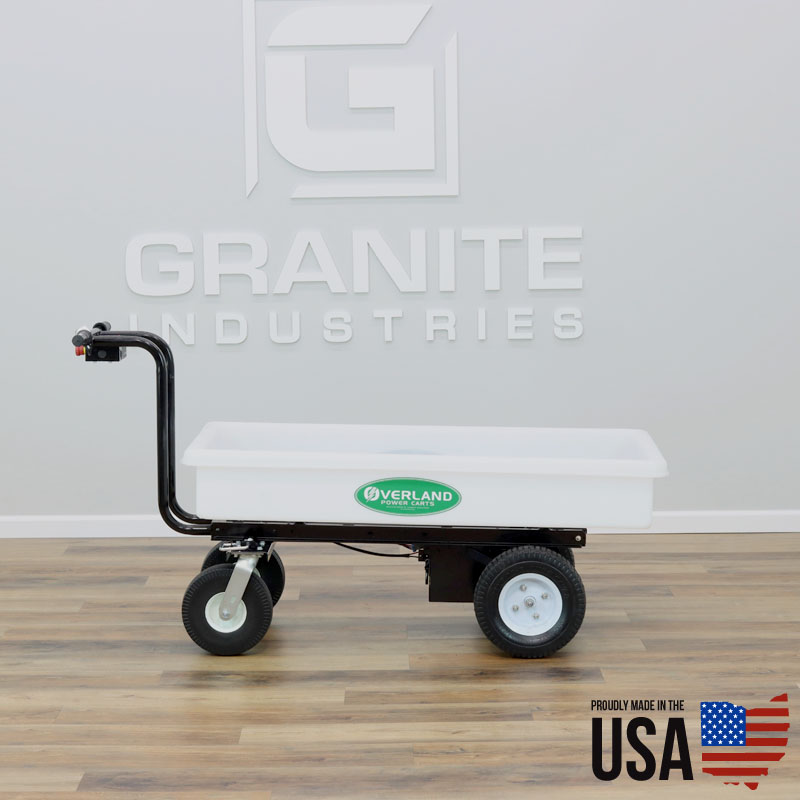

6 Cubic Foot Electric Wagon

Models

R44-6T (70041) Turf Tires
R44-6S (700**) Single Ag Tires
R44-6A (70067) Dual Ag Tires

Need to a boost to move heavy loads? The R44 is the electric cart for you. This electric garden cart has a versatile long bed with 6 cu. ft. of hauling space, so load it up! The 24″ wide hopper makes this the perfect cart for moving feed for your animals or stone and mulch for your landscaping jobs. This cart can take on up to 750 lbs of material.

All of our Powered Carts, Wheelbarrows and Wagons use a twist style throttle. They’re simple to operate and will cut down on your work time. We like to say, “Dump Your Old Wheelbarrow and Drive an Overland!”

ShopOnline
Quote Request

Top Five Reasons to Buy an Overland
1.  Easy to operate – So easy to use, even a child can safely operate it.  Plus it saves back and muscle strain.
2.  Made in the USA – Quality you can feel.  Manufacturing  & support is all out of Archbold, OH.
3.  All electric power – zero emissions, zero fumes, full power all the time.
4.  Minimal Maintenance – No oil filters, air filters or gas to add.  Just remember to plug it in.
5.  All Day Battery – Operate the cart throughout the day on a single charge.
Bonus – 750 lb capacity – Load up the cart with 750 lbs of whatever you want.

Additional Features

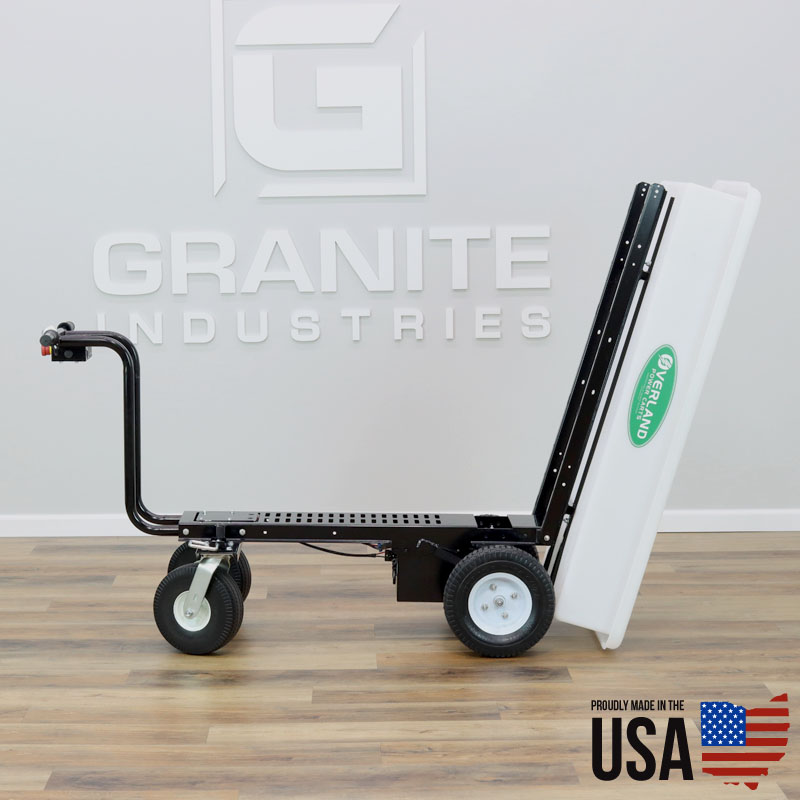

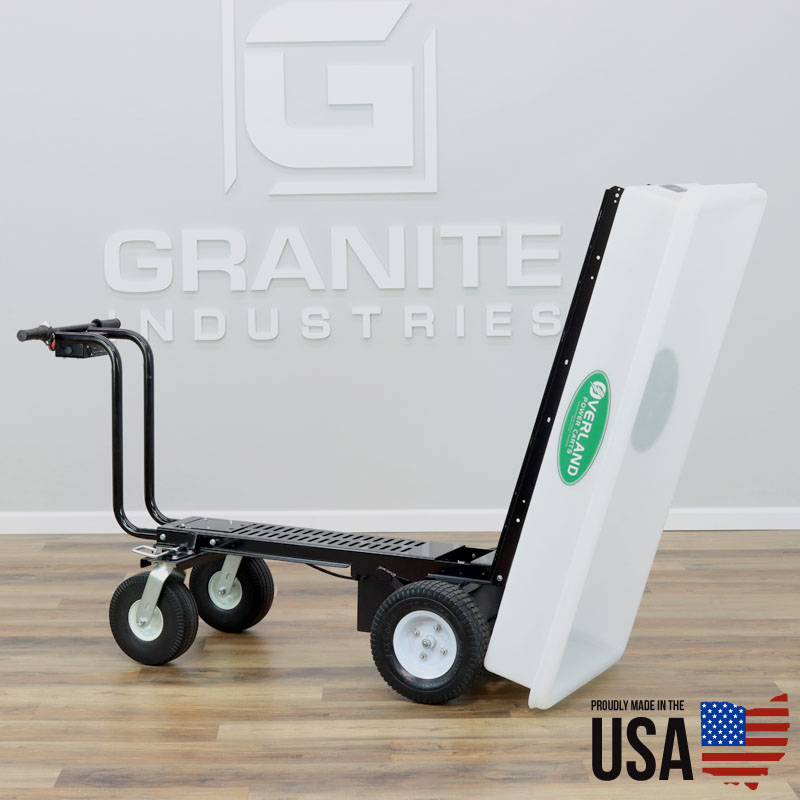

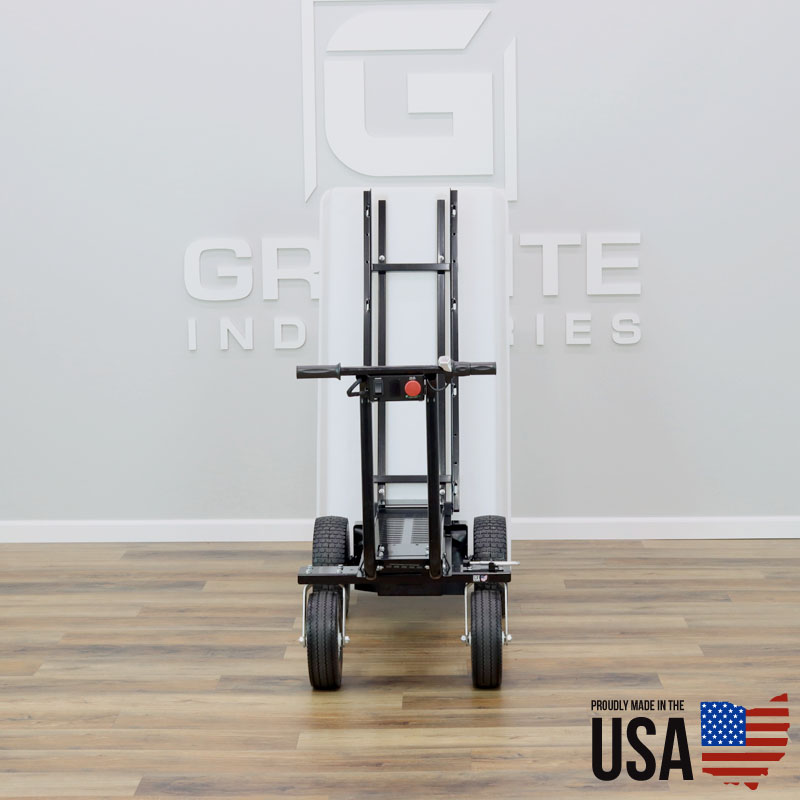

  • Heavy Duty Dumping Hopper
  • Enclosed gear box
  • Powder coated frame
  • Heavy duty 13″ drive tires
  • High density polyethylene tub
  • Variety of quick attach accessories
  • Removable Rechargable Battery Pack

Tire Descriptions

Dual Ag Tire – Best performing tire and most popular tire. It works well for all applications, especially where maximum traction is desired. The cart width without bucket is 33″ from tire edge to tire edge.

Turf Tire– Recommended tire for flat surfaces and indoor use where cart width is important. The cart width without bucket is 24″ from tire edge to tire edge.

Single Ag Tire– Recommended where more traction is needed than a turf tire but cart width is still important. The cart width without bucket is 24″ from tire edge to tire edge.

R44 Wagon Dimensions
Turf Tires
– R44-6T (70041): 38”H x 26”W x 65”L
Single Ag Tires  – R44-6S (700**): 38”H x 26”W x 65”L
Dual Ag Tires – R44-6A (70067): 38”H x 33”W x 65”L

R44 Wagon Weights
Turf Tires
– R44-6T (70041): 148 lbs
Single Ag Tires – R44-6S (700**): 148 lbs
Dual Ag Tires – R44-6A (70067): 166 lbs

Motor – 1 x 24 Volt DC Permanent Magnet
Continuous Power – 1 x 400 watts (0.536HP) at 24V
Drive – Single Reduction Open Differential Transaxle
Gear Ratio – 18:01
Capacity Level Ground – 750 lbs (295 kgs) Level Ground
Capacity 3:1 Slope – 500 lbs (227 kgs) 3:1 Slope
Speed – 0 – 2.4 mph / (0 – 3.9kph), Variable
Static/Park Brake – Electromechanical, Fail Safe
Dynamic/Green Braking – Yes
Manual Brake Override – Yes
Battery – Removable & Rechargable 24V 21AH Sealed Lead Acid
Controller Capacity – 70 Amps
Charger – Off Board, 5 Amp
Battery Life – 300 to 500 Charge/Discharge Cycles
Real World Battery Capacity – 6 – 8 Hours
Unit Capacity – 750 lbs

Overland Limited Warranty
1 year – Powertrain, Electronics and Hopper
3 year – Chassis
Terms
Warranty starts from the order date of the cart
Limited to manufacturing defects
For the full warranty – Overland Limited Warranty
