C27-10A (70024) with Dual Ag Tires
C27-10S (70078) with Single Ag Tires
C27-10T (70073) with Turf Tire

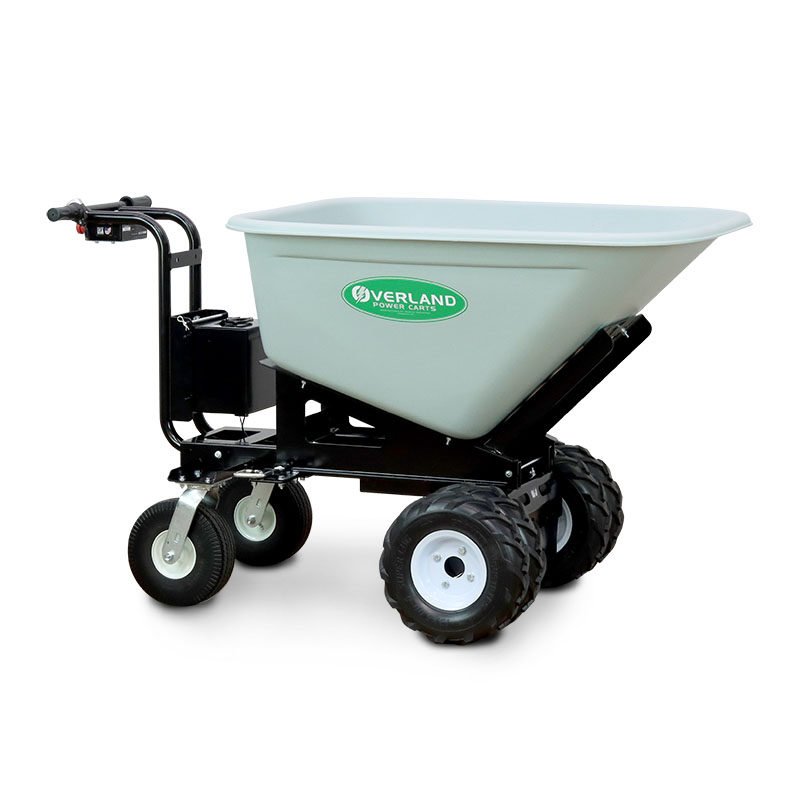

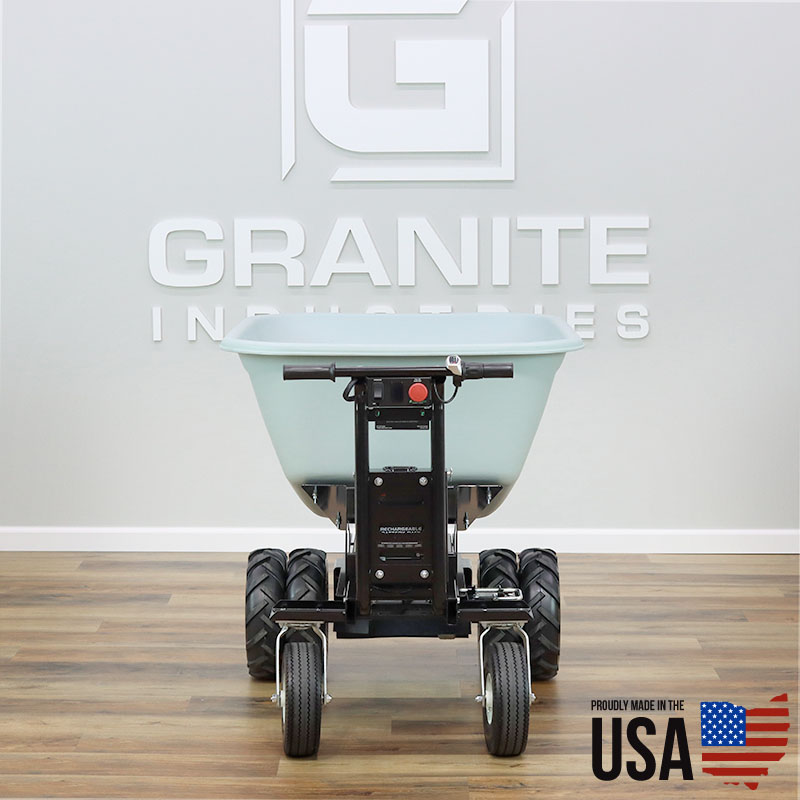

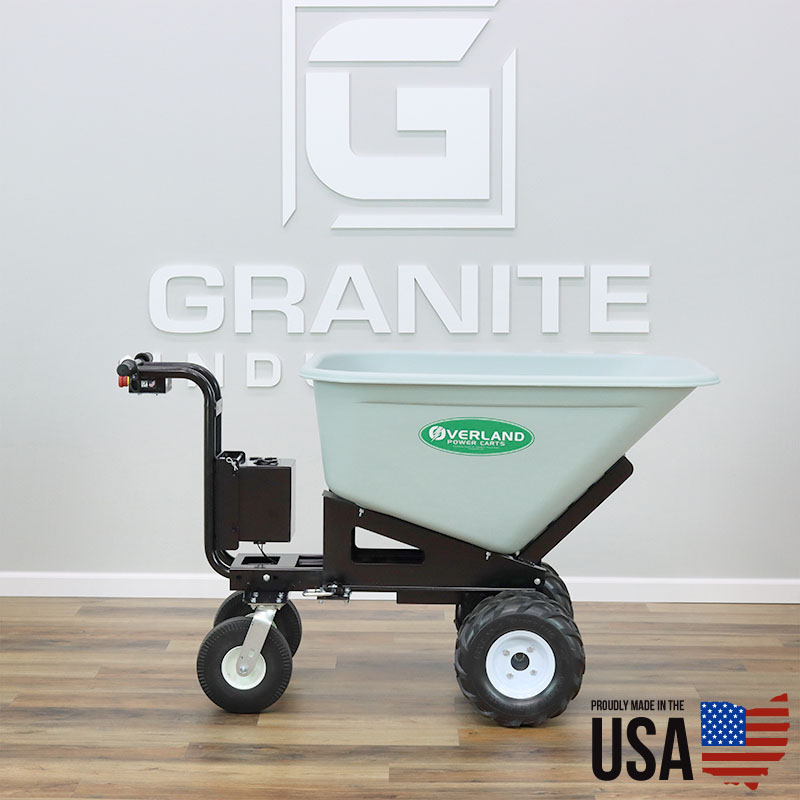

Need to move heavy loads? The C27-10A is the electric cart for you. This electric wheelbarrow has our largest amount of hauling space – 10 cubic foot – so load it up! The large hopper makes this the perfect cart for moving feed for your animals or stone and mulch for your landscaping jobs. This cart can take on up to 750 lbs of material.
All of our Powered Carts, Wheelbarrows and Wagons use a twist style throttle. They’re simple to operate and will cut down on your work time. We like to say, “Dump Your Old Wheelbarrow and Drive an Overland!”
Top Five Reasons to Buy an Overland
1. Easy to operate – So easy to use, even a child can safely operate it. Plus it saves back and muscle strain.
2. Made in the USA – Quality you can feel. Manufacturing & support is all out of Archbold, OH.
3. All electric power – zero emissions, zero fumes, full power all the time.
4. Minimal Maintenance – No oil filters, air filters or gas to add. Just remember to plug it in.
5. All Day Battery – Operate the cart throughout the day on a single charge.
Bonus – 750 lb capacity – Load up the cart with 750 lbs of whatever you want.

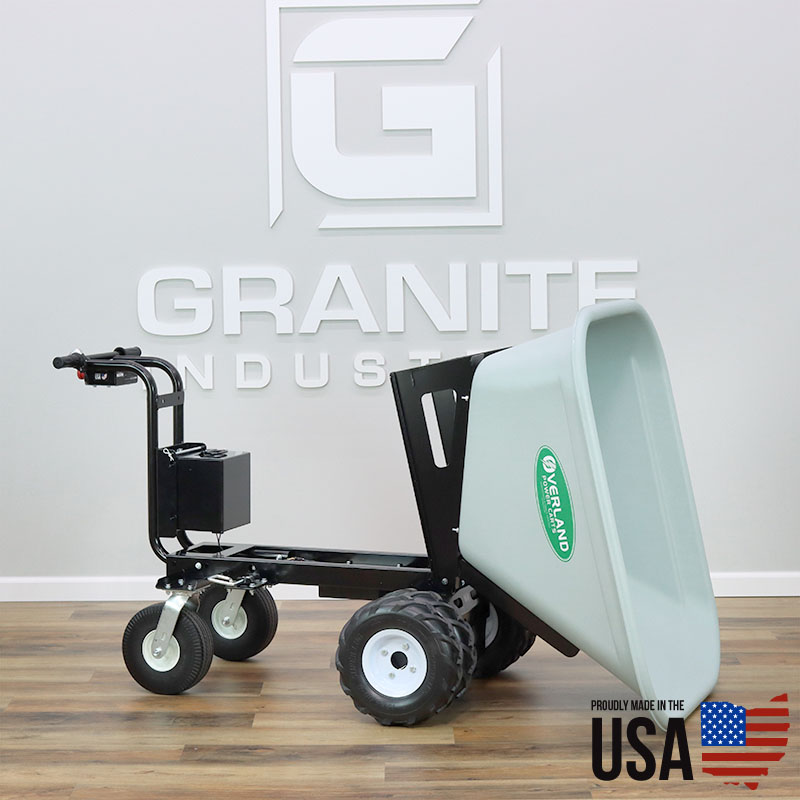

- Heavy Duty Dumping Hopper
- Enclosed gear box
- Powder coated frame
- Heavy duty 13″ drive tires
- High density polyethylene tub
- Variety of quick attach accessories
- Removable Rechargable Battery Pack
Dual Ag Tire – Best performing tire and most popular tire. It works well for all applications, especially where maximum traction is desired. The cart width without bucket is 33″ from tire edge to tire edge.
Turf Tire– Recommended tire for flat surfaces and indoor use where cart width is important. The cart width without bucket is 24″ from tire edge to tire edge.
Single Ag Tire– Recommended where more traction is needed than a turf tire but cart width is still important. The cart width without bucket is 24″ from tire edge to tire edge.
C27-10 Wheelbarrow Dimensions
Dual Ag Tires – C27-10A (70024): 38”H x 36”W x 61”L
Single Ag Tires – C27-10S (70078): 38”H x 36”W x 61”L
Turf Tires – C27-10T (70073): 38”H x 36”W x 61”L
C27-10 Wheelbarrow Weights
Dual Ag Tires – C27-10A (70024): 181 lbs
Single Ag Tires – C27-10S (70078): 163 lbs
Turf Tires – C27-10T (70073): 163 lbs
Motor – 1 x 24 Volt DC Permanent Magnet
Continuous Power – 1 x 400 watts (0.536HP) at 24V
Drive – Single Reduction Open Differential Transaxle
Gear Ratio – 18:01
Capacity Level Ground – 750 lbs (295 kgs) Level Ground
Capacity 3:1 Slope – 500 lbs (227 kgs) 3:1 Slope
Speed – 0 – 2.4 mph / (0 – 3.9kph), Variable
Static/Park Brake – Electromechanical, Fail Safe
Dynamic/Green Braking – Yes
Manual Brake Override – Yes
Battery – Removable & Rechargable 24V 12AH Sealed Led Acid
Controller Capacity – 70 Amps
Charger – Off Board, 2 Amp
Battery Life – 300 to 500 Charge/Discharge Cycles
Operating Time – 5 – 7.5 Hours (Continuous) 7.5 – 11.25 Hours (Start/Stop)
Unit Capacity – 750 lbs
Overland Limited Warranty
1 year – Powertrain, Electronics and Hopper
3 year – Chassis
Warranty starts from the order date of the cart
Limited to manufacturing defects
For the full warranty – Overland Limited Warranty
